Configure UFM Telemetry¶

Configure NVIDIA Unified Fabric Manager (UFM) to securely stream telemetry metrics and logs to the Service Kubernetes cluster.

Overview¶

UFM Telemetry collects InfiniBand fabric metrics and logs. UFM Telemetry includes the following components:

Components¶

UFM Prometheus Exporter -- Exposes InfiniBand fabric metrics on a Prometheus-compatible HTTPS endpoint (default port 9001).
vmagent (shared) -- Scrapes the UFM Prometheus exporter endpoint over TLS and forwards metrics to VictoriaMetrics.
VMServiceScrape CR -- Kubernetes custom resource that declares the UFM scrape target for the VictoriaMetrics operator.
VLAgent -- Receives UFM syslog events (RFC 3164/5424) and forwards them to VictoriaLogs.
Kubernetes Service + Endpoints -- Abstracts the external UFM appliance as a discoverable Kubernetes service for vmagent.

Data Flow¶

UFM Fabric Manager → OTEL Collector → vmagent (shared) → VictoriaMetrics
UFM Fabric Manager → syslog → VLAgent → VictoriaLogs

Supported Metrics and Logs¶

Metrics:

Category	Metrics Collected
Port State	InfiniBand port operational state (up, down, disabled)
Traffic Counters	Transmit/receive data rates (bytes/sec), packet counts per port
Error Counters	Symbol errors, link error recovery, link downed, VL15 dropped, excessive buffer overrun errors
Fabric Topology	Switch information, port mapping, node GUIDs, LID assignments
Telemetry Health	Scrape success rate, scrape duration, ingest latency

For the complete list of UFM telemetry metrics, see UFM Metrics Reference.

Logs:

Category	Logs Collected
Fabric Events	Fabric topology change events, port state transitions, error/warning messages
Manager Events	SM (Subnet Manager) events, SHARP events, UFM health events
Labels	Events are labeled with hostname, severity, and facility

Note

UFM Telemetry supports independent feature flags for metric collection and log collection. You can enable or disable each independently.

Prerequisites¶

Complete the following before you configure UFM telemetry. Provisioning the cluster happens after this configuration, as part of the deployment sequence.

The omnia_core container is deployed on the OIM. See Deploy Omnia Core.
The mapping file (pxe_mapping_file.csv) is created. See Create Mapping File.
Network connectivity between the service Kubernetes cluster and the NVIDIA UFM appliance.
A running NVIDIA UFM appliance (Omnia does not deploy UFM itself).

Procedure¶

Step 1: Add Required Software to software_config.json¶

UFM telemetry runs on the service Kubernetes cluster (Omnia configures the shared vmagent to scrape the UFM Prometheus endpoint). Ensure the service_k8s entry is present in software_config.json. Include an aarch64 entry only if you have aarch64 nodes.

software_config.json -- required for UFM telemetry

{
    "softwares": [
        {"name": "service_k8s", "version": "1.35.1", "arch": ["x86_64"]}
    ]
}

For the full file structure, see the software_config.json reference.

Step 2: Add Required Nodes to the Mapping File¶

UFM telemetry requires a service Kubernetes cluster. In pxe_mapping_file.csv, ensure the following functional groups are present:

service_kube_control_plane (three control plane nodes)
service_kube_node (at least one worker node)

pxe_mapping_file.csv -- example service K8s rows

FUNCTIONAL_GROUP_NAME,GROUP_NAME,SERVICE_TAG,PARENT_SERVICE_TAG,HOSTNAME,ADMIN_MAC,ADMIN_IP,BMC_MAC,BMC_IP,IB_NIC_NAME,IB_IP
service_kube_control_plane_x86_64,grp4,H94M8F3,,kcp1,BC:97:E1:F0:94:F0,172.16.107.96,b0:7b:25:d8:4a:f4,100.10.1.99,,
service_kube_control_plane_x86_64,grp5,2LXT933,,kcp2,BC:97:E1:F0:95:10,172.16.107.97,b0:7b:25:d8:4b:04,100.10.1.100,,
service_kube_control_plane_x86_64,grp7,8X697C3,,kcp3,BC:97:E1:F0:95:30,172.16.107.98,b0:7b:25:d8:4b:14,100.10.1.101,,
service_kube_node_x86_64,grp6,GZF6ZS3,,kn,EC:2A:72:32:C6:98,172.16.107.95,ec:2a:72:3b:a8:52,100.10.0.209,,

For the full format, see the PXE mapping file reference.

Step 3: Configure the UFM Appliance¶

Enable UFM Telemetry in the gv.cfg configuration file on the UFM appliance:

[Telemetry]
telemetry_provider = telemetry

(Optional) Configure SSL certificates -- If using CA-signed TLS, set up SSL and CA certificates in UFM. For detailed steps, see Setting Up SSL and CA Certificates in UFM.

Step 4: Configure UFM Log Forwarding (Optional)¶

To collect UFM logs, configure syslog forwarding on the UFM appliance. First, retrieve the VLAgent LoadBalancer IP:

Run on K8s control plane

kubectl get svc -n telemetry | grep vlagent

Using the UFM Web UI:

From the left navigation menu, select Settings > Data Streaming.
Select System log and complete the fields:
- Destination: Enter the VLAgent LoadBalancer IP address
- Syslog Port: Enter 514 (default)
- System logs Level: Select syslog level from the dropdown based on your requirements
- Streaming Data: Select UFM logs
Click Save.

Using the UFM CLI:

Modify the [Logging] section in /opt/ufm/conf/gv.cfg:

[Logging]
syslog = true
syslog_addr = <external vlagent loadbalancer IP>:514
ufm_syslog = true
event_syslog = true
syslog_level = WARNING

For detailed information on UFM syslog configuration parameters, see NVIDIA UFM Enterprise User Manual - Configuring Syslog.

Step 5: Enable UFM in telemetry_config.yml¶

Configure the UFM telemetry settings in telemetry_config.yml. For details on all parameters, see the telemetry_config.yml reference.

telemetry_config.yml -- UFM section

telemetry_sources:
  ufm:
    metrics_enabled: true
    logs_enabled: true
    collection_targets:
      - "victoria_metrics"
      - "victoria_logs"

ufm_configuration:
  ufm_endpoint: ""
  ufm_metrics_port: 9001
  scrape_interval: "30s"
  scrape_timeout: "15s"
  tls_mode: "self_signed"
  ufm_ca_cert_path: ""
  auth_mode: "basic"

Parameter	Description
`metrics_enabled`	Enable or disable UFM metric collection (`true` or `false`)
`logs_enabled`	Enable or disable UFM log collection (`true` or `false`)
`collection_targets`	Where UFM data is sent. Supported: `victoria_metrics`, `victoria_logs`
`ufm_endpoint`	IP address or hostname of the UFM appliance
`ufm_metrics_port`	Port for the UFM Prometheus exporter (default: `9001`)
`scrape_interval` / `scrape_timeout`	How often and how long to scrape UFM metrics
`tls_mode`	TLS verification mode: `self_signed` or `ca_signed`
`ufm_ca_cert_path`	Path to the CA certificate (required when `tls_mode` is `ca_signed`)
`auth_mode`	Authentication mode for UFM API: `basic`

Step 6: Deploy the Cluster¶

Deploy the cluster by running the full playbook sequence (prepare_oim.yml -> local_repo.yml -> build_image -> provision.yml). provision.yml configures the shared vmagent to scrape the UFM Prometheus endpoint. See Deploy the Telemetry Stack.

Important

If you enable UFM telemetry on an already-provisioned cluster, re-run provision.yml and then execute the telemetry.sh script on the K8s control plane. See Update Telemetry on a Running Cluster.

Run on K8s control plane

<K8s_NFS_mount_point>/telemetry/telemetry.sh

Verification¶

Verify UFM Telemetry Pods¶

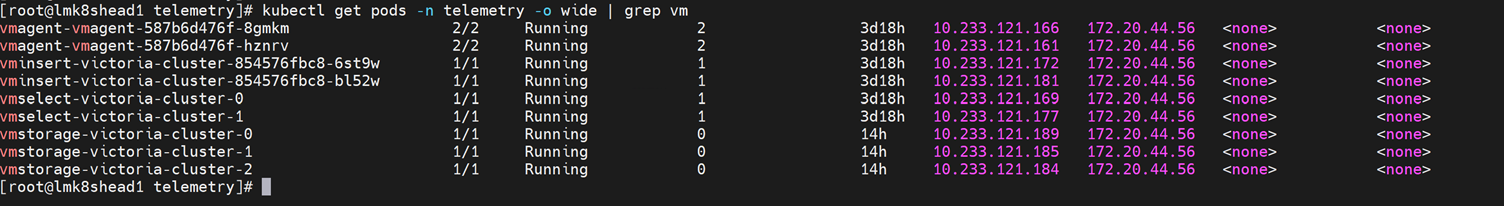

Verify that the VictoriaMetrics pods are running:
Run on K8s control plane
```
kubectl get pods -n telemetry -o wide | grep vm
```

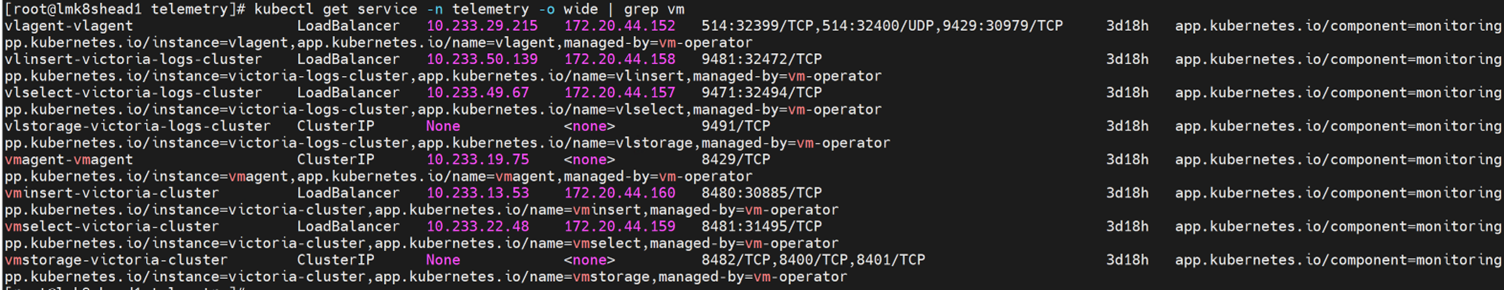

Verify that the VictoriaMetrics service is running:
Run on K8s control plane
```
kubectl get service -n telemetry -o wide | grep vm
```

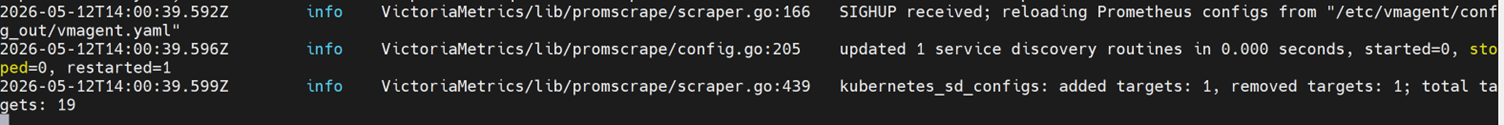

Verify VMagent logs for UFM scraping to view recent logs:

Run on K8s control plane

VMAGENT_POD=$(kubectl get pods -n telemetry -l app.kubernetes.io/name=vmagent -o jsonpath='{.items[0].metadata.name}')
kubectl logs $VMAGENT_POD -n telemetry -c vmagent --tail=50

View UFM Metrics in VictoriaMetrics UI (VMUI)¶

Use the VMUI to validate that UFM telemetry data is being collected.

Note the External IP and port number of the VictoriaMetrics service:
Run on K8s control plane
```
kubectl get svc -n telemetry | grep vmselect
```

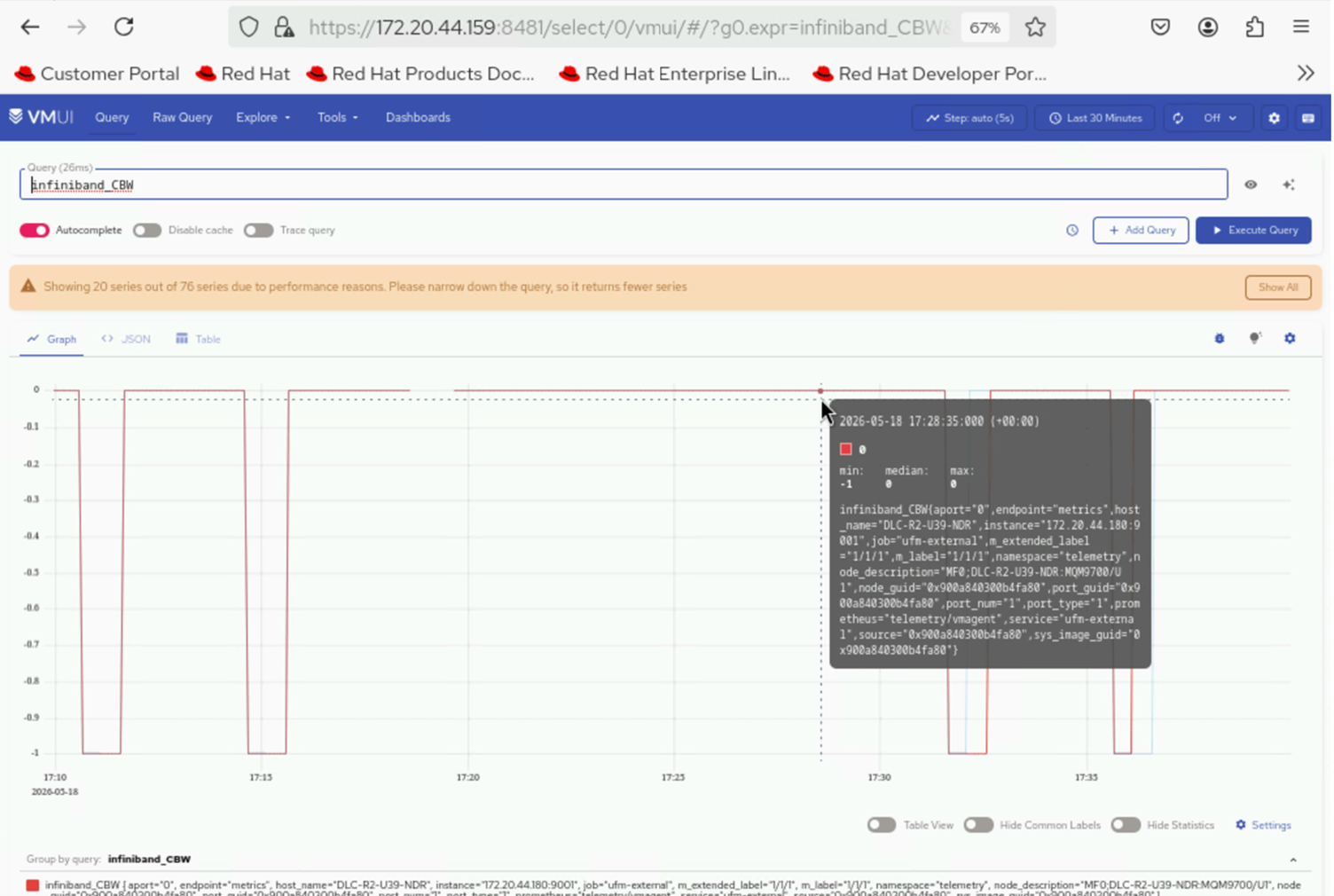

Access the VMUI in a web browser:

https://<external vmselect loadbalancer IP>:8481/select/vmui

Filter and view UFM InfiniBand metrics using queries in VMUI. For example:
```
{source="ufm", subsystem="infiniband"}
```

View UFM Logs in VictoriaLogs¶

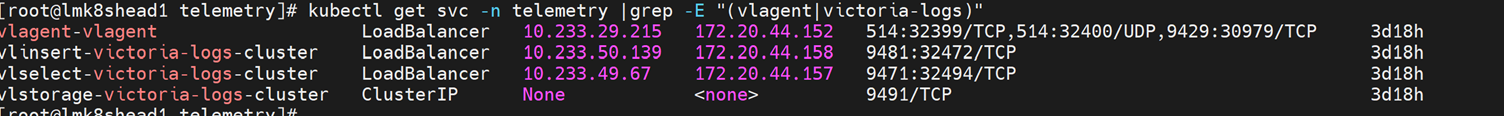

Retrieve the VLAgent LoadBalancer IP and configure it on the UFM appliance:
Run on K8s control plane
```
kubectl get svc -n telemetry | grep -E "(vlagent|victoria-logs)"
```
Retrieve the external IP and port of the vlselect service:
Run on K8s control plane
```
kubectl get svc -n telemetry | grep vlselect
```

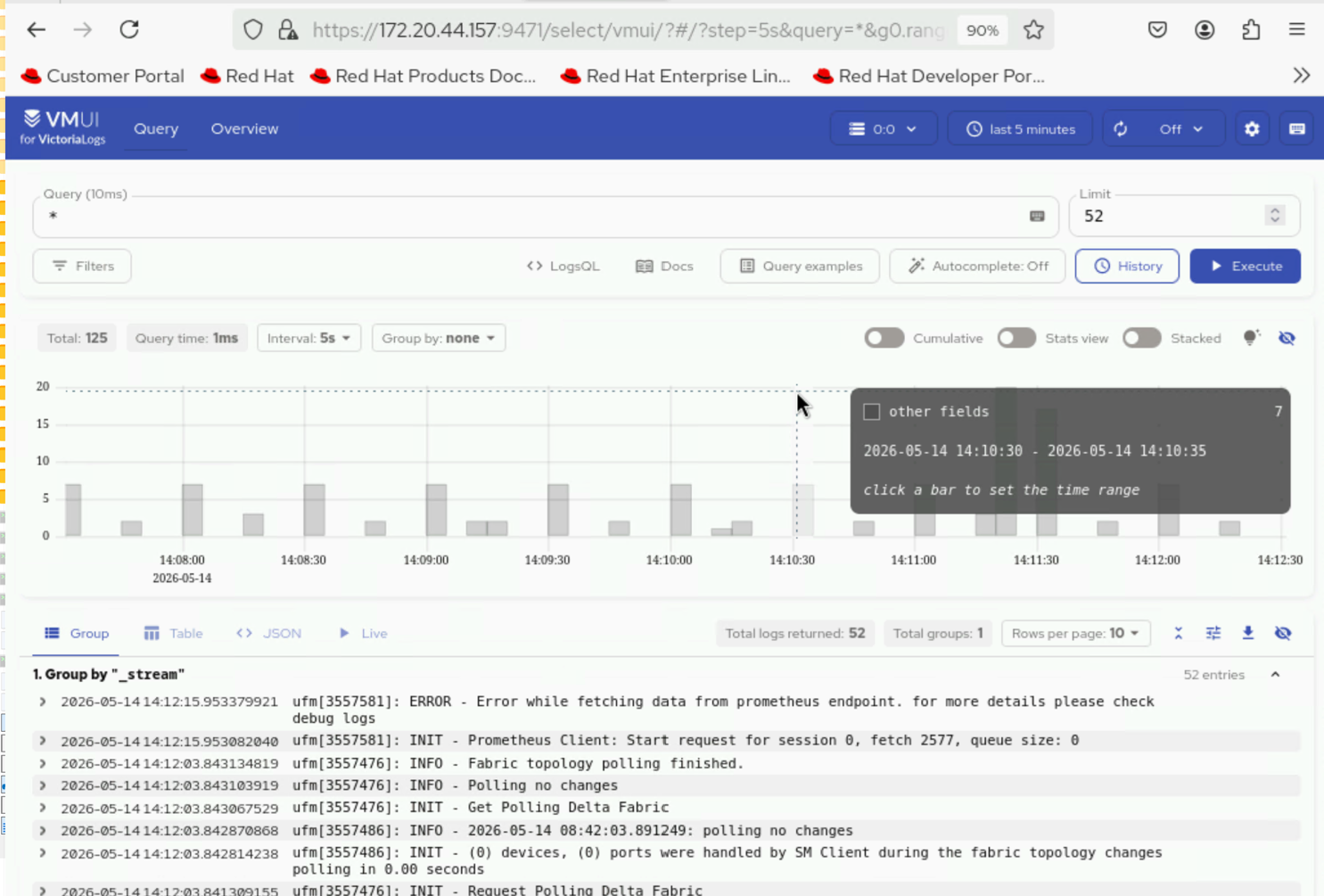

Access the VictoriaLogs UI in a web browser:

https://<external vlselect loadbalancer IP>:9471/select/0/vmui

Next Steps¶

Setup Telemetry -- Overview of all telemetry sources.

Troubleshooting¶

For common telemetry issues and resolutions, see Troubleshooting Telemetry.
