Provision Nodes¶

Run the provision.yml playbook to discover, configure, and provision bare-metal cluster nodes. This playbook reads the PXE mapping file, configures boot scripts and cloud-init based on functional groups, and prepares all target servers for PXE boot.

Prerequisites¶

The Create Mapping File procedure is complete.
The Configure Credentials procedure is complete.
The Configure Inputs procedure is complete.
The Prepare OIM procedure is complete (OpenCHAMI and DHCP are running).
The Create Local Repos procedure is complete (local Pulp repository is set up with required packages).
The Build Cluster Images procedure is complete. Verify that images exist for each functional group:
Run on: OIM host
```
s3cmd ls -Hr s3://boot-images
```
The UEFI boot setting is configured in the BIOS settings of all target servers before initiating PXE boot.
Admin and BMC network switches are manually configured.
External NFS storage is accessible by all nodes and reachable on the admin network.
The OIM NIC connected to remote servers (through the switch) is configured with the correct IP addresses:

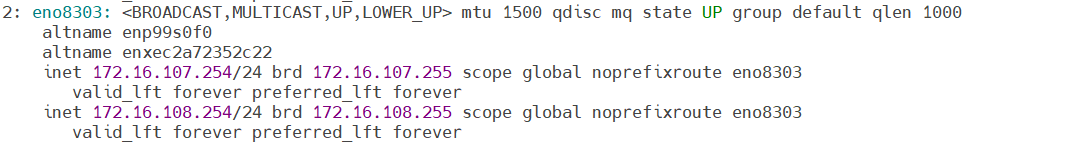

- Shared LOM / hybrid setup: Two IPs (BMC IP and admin IP) on the same NIC.

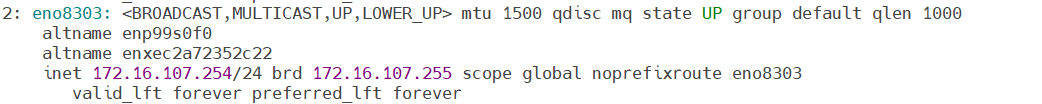

- Dedicated network topology: A single IP (admin IP).
All network manager connection names match their corresponding device names. To verify:
Run on: OIM host
```
nmcli connection
ip link show
```
If there is a mismatch, edit /etc/sysconfig/network-scripts/ifcfg-<nic name> to correct the connection name.
When discovering nodes via mapping files, all cluster nodes are set to PXE mode before running the playbook.
The first PXE device on target nodes is the designated active NIC for PXE booting.

Caution

After the cluster has been configured and deployed, changing the OIM node is not supported. If you need to change the OIM node, you must redeploy the entire cluster.

Procedure¶

Enter the omnia_core container:
Run on: OIM host
```
ssh omnia_core
```
Verify all prerequisites are complete:
- The mapping file, credentials, input files, OIM services, local repos, and cluster images are configured as listed in Prerequisites.
- Verify boot images exist:
  Run on: omnia_core container
```
s3cmd ls -Hr s3://boot-images
```
Run the provision playbook:
Run on: omnia_core container
```
cd /omnia/provision
ansible-playbook provision.yml
```
The playbook performs the following:
- Provisions all target servers.
- Configures the boot script based on functional groups.
- Configures cloud-init based on functional groups.
- Applies additional cloud-init configurations (if additional_cloud_init_config_file is set in provision_config.yml).
- Deploys iDRAC telemetry service on the service cluster.
- Deploys LDMS on the service cluster.
PXE boot the nodes using one of the following methods:
- Manual PXE boot: Power on target servers and select network boot from the BIOS boot menu.
- Automated PXE boot: Use the set_pxe_boot.yml playbook. For detailed steps, see Configure PXE Boot.
Monitor provisioning progress:
Run on: omnia_core container
```
tail -f /opt/omnia/log/provision.log
```

Note

Ansible playbooks run concurrently on 5 nodes by default. To change this, update the forks value in ansible.cfg in the playbook directory.
Omnia does not track the OS installation on the target node. Verify the installation status manually.
While the admin_nic on cluster nodes is configured by Omnia to be static, the public NIC IP address must be configured by the user.

Caution

In case of any IP route conflict between the admin network and an additional NIC (for example, an internet NIC), delete the admin route or configure the IP route priority based on your cluster requirements.
If internet connectivity is required on the target node, configure it after the node is booted.
To avoid breaking the password-less SSH channel on the OIM, do not run ssh-keygen commands after execution of provision.yml.
Do not delete the Omnia shared path or the NFS directory.

Important

After running provision.yml, the file /opt/omnia/input/project_default/omnia_config_credentials.yml is encrypted. To edit it, use:

Run on: omnia_core container

ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

Post execution of provision.yml, IPs and hostnames cannot be reassigned by changing the mapping file.

Verification¶

Check provision logs for errors:
Run on: omnia_core container
```
cat /opt/omnia/log/provision.log | tail -50
```
Check cloud-init output on a provisioned node:
Run on: provisioned compute node
```
cat /var/log/cloud-init-output.log | tail -30
```
Verify all nodes are reachable:
Run on: omnia_core container
```
ansible all -m ping
```

Next Steps¶

Configure PXE Boot -- Automate PXE boot for provisioned nodes
Verify Cluster -- Verify the cluster is operational
Set Up Telemetry -- Start telemetry collection

Troubleshooting¶

Provision playbook fails at "Waiting for node registration" Verify the admin network switch is configured and nodes can PXE boot. Check DHCP and TFTP services on the OIM:

Run on: OIM host

systemctl status coredhcp.service
systemctl status tftpd.service

Cloud-init did not complete on provisioned node Check the cloud-init log on the affected node:

Run on: provisioned compute node

cat /var/log/cloud-init-output.log
journalctl -u cloud-init --no-pager -n 50

Nodes not reachable after provisioning Verify admin network connectivity and NIC configuration:

Run on: OIM host

ping -c 3 <admin-ip>
arping -D -I <admin-nic> <admin-ip>

Check for IP route conflicts between admin and public networks on the node.

omnia_config_credentials.yml is encrypted and cannot be edited Use the vault password file to edit:

Run on: omnia_core container

ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key
