Provision the Cluster Nodes

The provision.yml playbook provisions the probable bare-metal cluster nodes. This playbook is dependent on inputs from the pxe mapping file:

  • /opt/omnia/input/project_default/provision_config.yml

  • /opt/omnia/input/project_default/network_spec.yml

Note

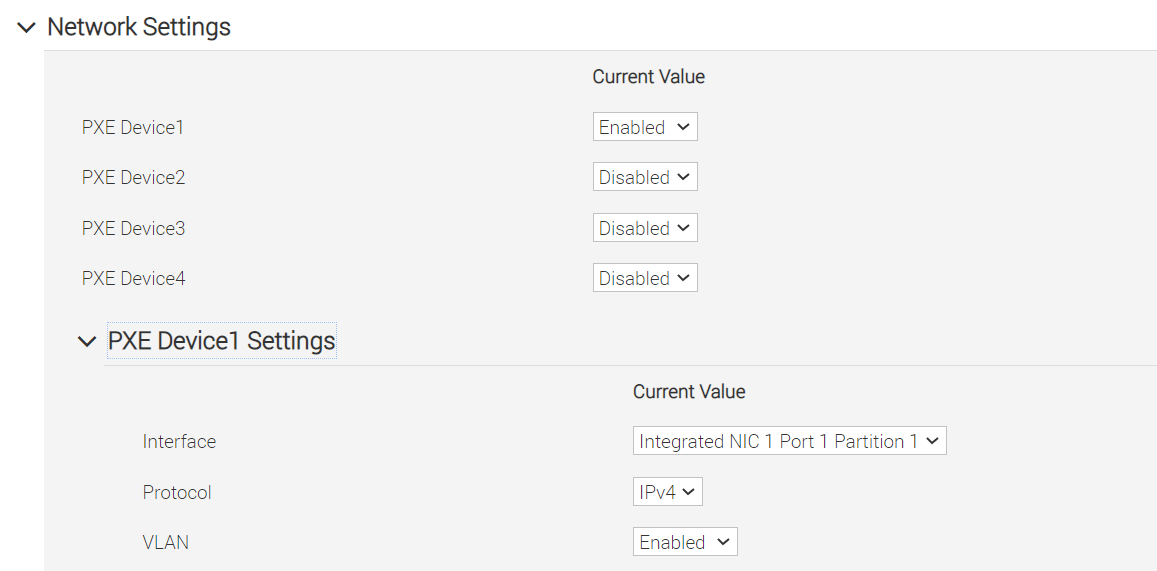

The first PXE device on target nodes should be the designated active NIC for PXE booting.

../../../_images/BMC_PXE_Settings.png

Configurations made by the provision.yml playbook

  • Provisions all target servers.

  • Configures the boot script based on the functional groups.

  • Configures the cloud-init based on the functional groups.

  • Deploys iDRAC telemetry service on the service cluster.

  • Deploys LDMS on the service cluster.

Playbook execution

Prerequisites

Before running the provision.yml playbook:

  • Ensure that the images are created for each functional group. To verify that the images are created, run the following command on the OIM:

    s3cmd ls -Hr s3://boot-images

To deploy the Omnia provision tool, execute the following commands:

ssh omnia_core
cd /omnia/provision
ansible-playbook provision.yml

Note

  • After executing provision.yml playbook, you can check the log files available at /opt/omnia/log for more information.

  • To identify any issues on the node booted, check the /var/log/cloud-init-output.log.

  • Omnia does not track the OS installation on the target node. User has verify the installation status manually.

  • Ansible playbooks by default run concurrently on 5 nodes. To change this, update the forks value in ansible.cfg present in the respective playbook directory.

  • While the admin_nic on cluster nodes is configured by Omnia to be static, the public NIC IP address should be configured by user.

  • All ports required by OpenCHAMI will be opened (For a complete list, see Omnia Ports).

  • After running provision.yml, the file /opt/omnia/input/project_default/omnia_config_credentials.yml will be encrypted. To edit the file, use the command: ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

  • Post execution of provision.yml, IPs/hostnames cannot be re-assigned by changing the mapping file.

Caution

  • In case of any IP route conflict between Admin network and additional NIC (for example: Internet NIC), delete the Admin route or configure the IP route priority based on your cluster requirements.

  • If the internet connection is required on the target node, configure it after the node is booted.

  • To avoid breaking the password-less SSH channel on the OIM, do not run ssh-keygen commands post execution of provision.yml to create a new key.

  • Do not delete the Omnia shared path or the NFS directory.

Next steps:

  • After successfully running the provision.yml playbook, you can either manually PXE boot the nodes or use the set_pxe_boot.yml playbook. PXE booting allows the nodes to load diskless images from the Omnia Infrastructure Manager (OIM). For detailed steps on using set_pxe_boot.yml, see Configure PXE Boot.

  • Execute telemetry.yml to start the telemetry collection.
