Step 8: Verify Telemetry Services Deployed on the Cluster

This section outlines the steps to validate telemetry services and their components, including checking pod status, verifying message flow, confirming TLS connectivity, and reviewing collected telemetry data.

Note

For the list of iDRAC telemetry metrics collected by Kafka and VictoriaMetrics, see iDRAC Telemetry Reference Tools.

Verify Telemetry-Related Pods Are Running

To verify that the iDRAC Telemetry, Kafka, LDMS, VictoriaMetrics, and VictoriaLogs pods are running, do the following:

1. Run the following command:

   kubectl get pods -n telemetry


2. Ensure that the following pods are in a running state in the output:

   • iDRAC Telemetry pods

   • Kafka broker, controller, and operator pods

   • LDMS aggregator and store pods

   • VictoriaMetrics and vmagent pods

   • VictoriaLogs pods

   • PowerScale Telemetry pods

The following is the sample output file:

Verify Kubernetes Telemetry Services Attached to Telemetry

To verify Kubernetes telemetry services attached to the iDRAC Telemetry, Kafka, LDMS, VictoriaMetrics, and VictoriaLogs pods, do the following:

1. Run the following command:

   kubectl get svc -n telemetry


2. Ensure the following service entries exist:

   • iDRAC Telemetry service

   • Kafka broker, controller (bootstrap), and bridge services

   • LDMS aggregator and store services

   • VictoriaMetrics service

   • VictoriaLogs service

   • PowerScale Telemetry service

The following is the sample output file:

Verify iDRAC Telemetry Messages in Kafka

To verify that iDRAC telemetry data is being successfully published to the idrac Kafka topic, do the following:

1. Log in to the Service Kubernetes Control plane.

2. Create a Kafka consumer using the following command:

   KAFKA_LB_IP=<external load balancer IP of the bridge-bridge-lb service>
   curl -X POST http://$KAFKA_LB_IP:8080/consumers/idrac-consumer-group \
   -H 'content-type: application/vnd.kafka.v2+json' \
   -d '{
           "name": "idrac-consumer-1",
           "format": "json",
           "auto.offset.reset": "earliest"
       }'


3. Subscribe the consumer to the telemetry topic using the following command:

   curl -X POST http://$KAFKA_LB_IP:8080/consumers/idrac-consumer-group/instances/idrac-consumer-1/subscription \
   -H 'content-type: application/vnd.kafka.v2+json' \
   -d '{"topics": ["idrac"]}'


4. Consume messages from the topic using the following command:

   while true; do curl -X GET http://$KAFKA_LB_IP:8080/consumers/idrac-consumer-group/instances/idrac-consumer-1/records \
   -H 'accept: application/vnd.kafka.json.v2+json' | jq '.' ;  sleep 2; done


If telemetry metrics are collected correctly, the output contains JSON-formatted iDRAC telemetry records.

Verify LDMS Messages in Kafka

To verify that LDMS telemetry data is being successfully published to the ldms Kafka topic, do the following:

1. Log in to the Service Kubernetes Control plane.

2. Create a Kafka consumer using the following command:

   KAFKA_LB_IP=<external load balancer IP of the bridge-bridge-lb service>
   curl -X POST http://$KAFKA_LB_IP:8080/consumers/ldms-consumer-group \
   -H 'content-type: application/vnd.kafka.v2+json' \
   -d '{
           "name": "ldms-consumer-1",
           "format": "json",
           "auto.offset.reset": "latest",
           "enable.auto.commit": true
       }'


3. Subscribe the consumer to the LDMS topic using the following command:

   curl -X POST http://$KAFKA_LB_IP:8080/consumers/ldms-consumer-group/instances/ldms-consumer-1/subscription \
   -H 'content-type: application/vnd.kafka.v2+json' \
   -d '{"topics": ["ldms"]}'


4. Consume messages from the topic using the following command:

   while true; do curl -X GET http://$KAFKA_LB_IP:8080/consumers/ldms-consumer-group/instances/ldms-consumer-1/records \
   -H 'accept: application/vnd.kafka.json.v2+json' | jq '.' ;  sleep 2; done


If telemetry is flowing correctly, the output contains JSON-formatted LDMS telemetry records.

Note

When new nodes are added, ensure the nodes are up and cloud-init has completed successfully (check /var/log/cloud-init-output.log on each node). Then, create a new Kafka consumer group with a unique name (e.g., ldms-new-nodes-group) to verify metrics from the newly added nodes. Wait 2-3 minutes after discovery completes before checking.

Verify Kafka TLS Connectivity

To verify TLS connectivity for Kafka, run the Kafka TLS test job to verify that certificates, truststores, keystores, and mTLS communication are functioning correctly:

cd /<nfs client mount path of the service k8s cluster>/telemetry/deployments/test
kubectl apply -f kafka.tls_test_job.yaml

After the job completes, check the logs to confirm that the TLS connection is successful:

kubectl logs kafka-tls-test-xxx -n telemetry

Verify VictoriaMetrics TLS Connectivity

To verify TLS connectivity for VictoriaMetrics, run the VictoriaMetrics TLS test job to verify that certificates and secure connectivity are functioning correctly:

cd /<nfs client mount path of the service k8s cluster>/telemetry/deployments/test
kubectl apply -f victoria-tls-test-job.yaml

After the job completes, check the logs to confirm that the TLS connection is successful:

kubectl logs victoria-tls-test-xxx -n telemetry

View Collected Logs using VictoriaLogs Query Interface

After applying the telemetry.yml configuration with idrac_telemetry_collection_type set to victoria, you can access the VictoriaLogs query interface to validate that log data is being collected and stored successfully.

1. Run the following command to verify that the VictoriaLogs vlselect pod is running:

   kubectl get pods -n telemetry -o wide | grep vlselect


2. Run the following command to verify that the VictoriaLogs vlselect service is running:

   kubectl get service -n telemetry -o wide | grep vlselect


3. Note the External IP and port number of the VictoriaLogs vlselect service. The external IP and port number will be used to access the VictoriaLogs query interface.

4. Access the VictoriaLogs query interface in a web browser using:

   https://<external vlselect loadbalancer IP>:9471/select/vmui

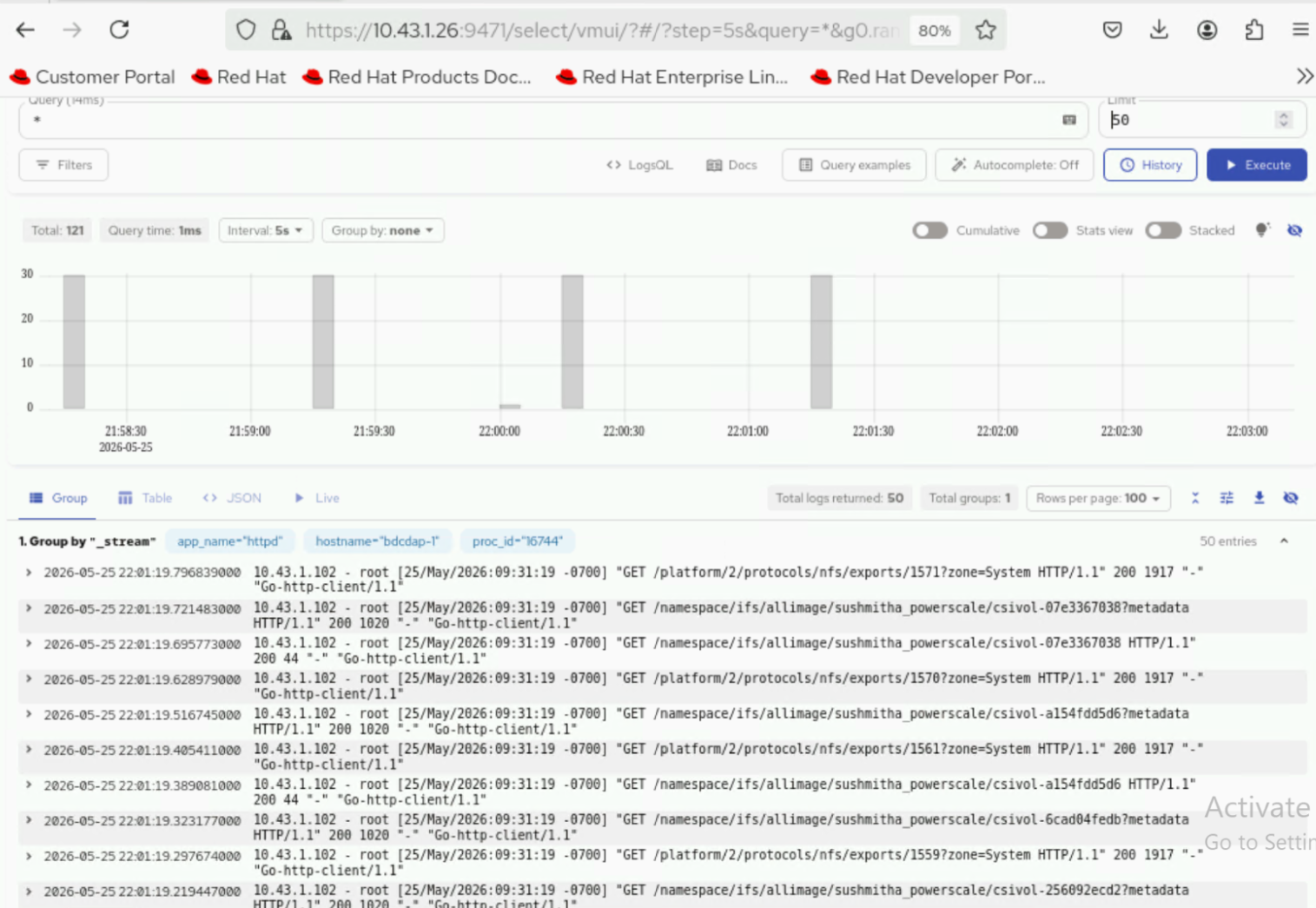

5. Filter and view logs using LogsQL queries in the query interface. For example, the following query displays recent log entries:

* | sort by time desc

View Collected iDRAC Telemetry Data using VictoriaMetrics UI (VMUI) - Cluster Mode Deployment

After applying the telemetry.yml configuration using the VictoriaMetrics deployment mode as cluster, use the (VMUI) to validate that iDRAC telemetry data is being collected and stored successfully in a cluster mode VictoriaMetrics deployment. For more details, see VictoriaMetrics Cluster deployment documentation.

1. Run the following command to verify that the VictoriaMetrics pod is running:

   kubectl get pods -n telemetry -o wide | grep vm


2. Run the following command to verify that the VictoriaMetrics service is running:

   kubectl get service -n telemetry -o wide | grep vm


3. Note the External IP and port number of the VictoriaMetrics service. The external IP and port number will be used to access the VictoriaMetrics UI (VMUI).

4. Access the VMUI in a web browser using:

   https://<external vmselect loadbalancer IP>:8481/select/0/vmui


5. Filter and view telemetry metrics using queries in VMUI. For example, the following query displays detailed PowerEdge metrics for each hardware component:

{__name__=~"PowerEdge_.*"}

View Collected PowerScale Telemetry Data using VictoriaMetrics UI (VMUI) - Cluster Mode Deployment

After applying the telemetry.yml configuration using the VictoriaMetrics deployment mode as cluster, use the (VMUI) to validate that PowerScale telemetry data is being collected and stored successfully in a cluster mode VictoriaMetrics deployment. For more details, see VictoriaMetrics Cluster deployment documentation.

1. Run the following command to verify that the VictoriaMetrics pod is running:

   kubectl get pods -n telemetry -o wide | grep vm


2. Run the following command to verify that the VictoriaMetrics service is running:

   kubectl get service -n telemetry -o wide | grep vm

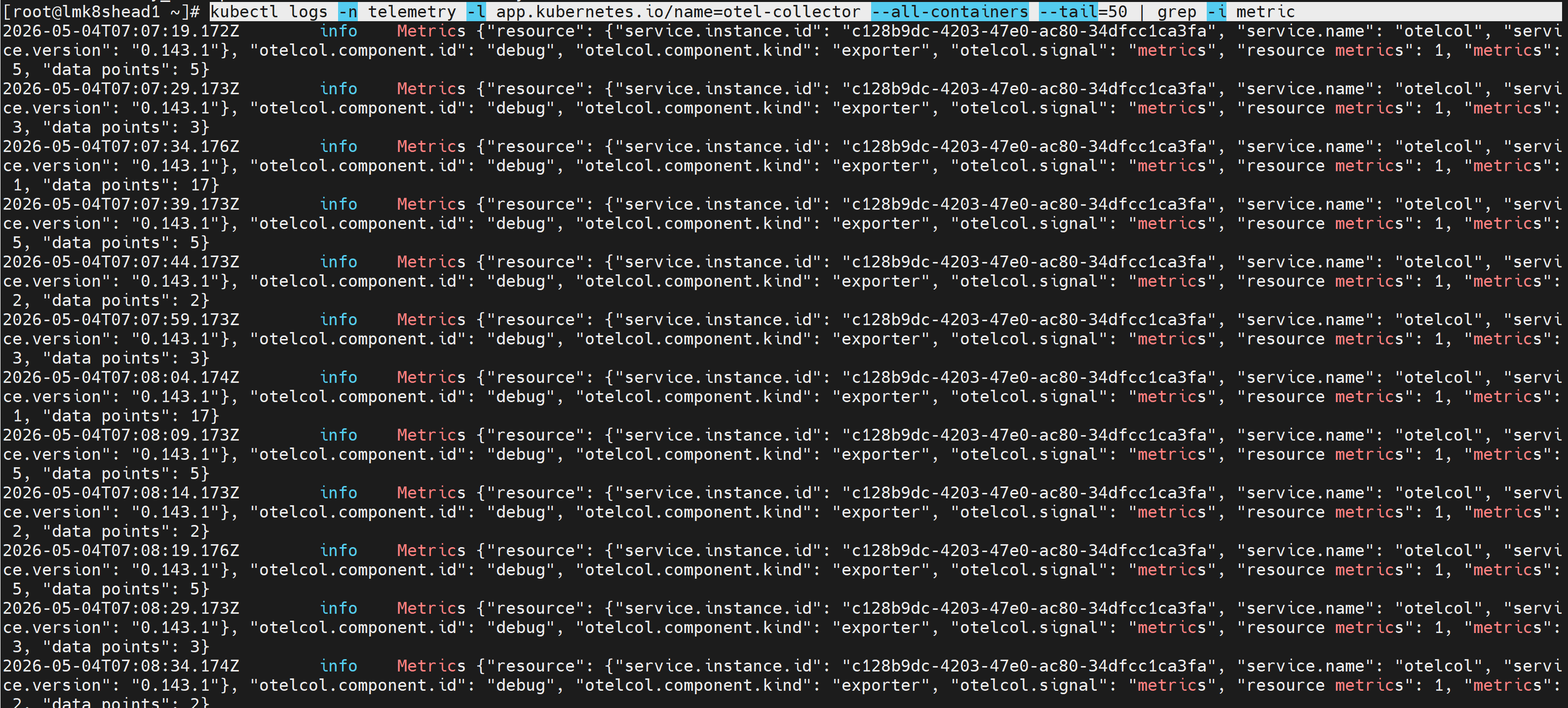

3. Run the following command to verify if OTEL collector is receiving telemetry data:

   kubectl logs -n telemetry -l app.kubernetes.io/name=otel-collector --all-containers --tail=50 | grep -i metric


4. Note the External IP and port number of the VictoriaMetrics service. The external IP and port number will be used to access the VictoriaMetrics UI (VMUI).

5. Access the VMUI in a web browser using:

   https://<external vmselect loadbalancer IP>:8481/select/0/vmui


5. Filter and view telemetry metrics using queries in VMUI. For example, the following query displays detailed PowerScale metrics for each hardware component:

{__name__=~"powerscale"}

Accessing the MySQL Database

After telemetry.yml has been executed for the service cluster, you can check the MySQL database inside the mysqldb container. To view these logs, do the following:

1. Use the following command to get the names of all the telemetry pods:

   kubectl get pods -n telemetry -l app=idrac-telemetry


Note

The idrac-telemetry-0 pod will always be responsible for collecting the telemetry data of the management nodes (oim, service_kube_control_plane_x86_64, service_kube_node_x86_64, login_node_x86_64, etc.).

2. Execute the following command:

   kubectl exec -it -n telemetry <iDRAC_telemetry_pod_name> -c mysqldb -- mysql -u <MYSQL_USER> -p


3. When prompted, enter the mysql password to log in.

4. To enter into the idrac_telemetry_db, use the following command:

   use idrac_telemetrydb;


5. To access the services table:

   select * from services;
