Enable repository for x86_64

The build steps must be performed on RHEL 10.0 OS node.

Prerequisites

If you are using RHEL subscription, enable CodeReady Builder (CRB)

subscription-manager repos --enable rhel-10-for-x86_64-baseos-rpms
subscription-manager repos --enable rhel-10-for-x86_64-appstream-rpms
subscription-manager repos --enable codeready-builder-for-rhel-10-x86_64-rpms

Enable repository for aarch64

Prerequisites

1. Identify the aarch64 node, install the operating system, and assign a free PXE IP address.

2. If internet connection is not available, do the following:

   1. Enable the network masquerading to provide internet access.

   2. Run the following script:

      #!/bin/bash

      echo "=== Enable MASQUERADE (Internet Sharing) ==="
      echo

      read -p "Enter INTERNET interface name " WAN
      read -p "Enter PXE interface name " LAN

      echo
      echo "WAN interface : $WAN"
      echo "LAN interface : $LAN"
      echo

      # Enable IP forwarding
      echo "[*] Enabling IP forwarding..."
      echo 1 > /proc/sys/net/ipv4/ip_forward

      # Add NAT rule
      echo "[*] Adding MASQUERADE rule..."
      iptables -t nat -A POSTROUTING -o "$WAN" -j MASQUERADE

      # Add forward rules
      echo "[*] Allowing forwarding..."
      iptables -A FORWARD -i "$LAN" -o "$WAN" -j ACCEPT
      iptables -A FORWARD -i "$WAN" -o "$LAN" -m state --state RELATED,ESTABLISHED -j ACCEPT

      echo
      echo "✔ MASQUERADE enabled successfully"
      echo "✔ $LAN can now access internet via $WAN"


3. If you are using RHEL subscription, enable CodeReady Builder (CRB)

   subscription-manager repos --enable rhel-10-for-aarch64-baseos-rpms
   subscription-manager repos --enable rhel-10-for-aarch64-appstream-rpms
   subscription-manager repos --enable codeready-builder-for-rhel-10-aarch64-rpms


Build Slurm repository without GPU support

1. Install dependencies. The following command is provided as an example:

   dnf install -y   wget git make gcc gcc-c++ rpm-build autoconf automake   python3 python3-devel perl perl-devel   readline-devel zlib-devel pam-devel dbus-devel   hwloc-devel libbpf-devel   pmix pmix-devel   jansson-devel   json-c json-c-devel   libyaml libyaml-devel   openssl-devel   mariadb-devel systemd-devel   munge munge-devel


2. Download slurm tar file: wget, Download

3. Run the RPM Build command. Run the following command from the directory containing the downloaded tar file. The following command is provided as an example:

   rpmbuild -ta slurm-25.05.2.tar.bz2   --with pmix   --define "with_pmix --with-pmix=/usr"   --with yaml   --define "with_yaml --with-yaml"   --without hdf5   --define "without_hdf5 --without-hdf5"   --with nvml   --define "_with_nvml --with-nvml=/usr/local/cuda"   --without ucx   --define "without_ucx --without-ucx"


After the build is completed, the RPMs are available at /root/rpmbuild/RPMS/x86_64/ or /root/rpmbuild/RPMS/aarch64/.

4. To verify the build before hosting, navigate to /root/rpmbuild/RPMS/x86_64/ or /root/rpmbuild/RPMS/aarch64/ and run the following command:

   sudo rpm -ivh slurm-25.05.2-1*.x86_64.rpm
   slurm-slurmd-25.05.2-1*.x86_64.rpm


Or,

sudo rpm -ivh slurm-25.05.2-1*.aarch64.rpm
slurm-slurmd-25.05.2-1*.aarch64.rpm

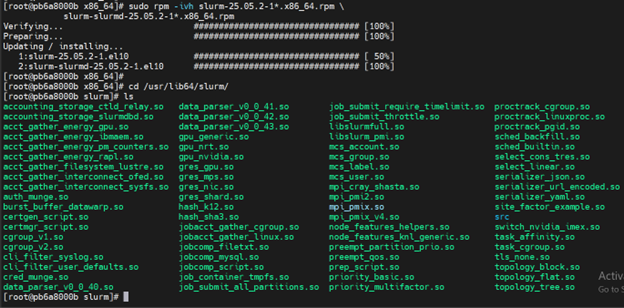

All the required .so, cgroup_v2.so files should be available.

After you verify the build, remove the rpm packages.

sudo dnf remove -y 'slurm'

Build Slurm repository with GPU support

1. Install dependencies. The following command is provided as an example:

   dnf install -y   wget git make gcc gcc-c++ rpm-build autoconf automake   python3 python3-devel perl perl-devel   readline-devel zlib-devel pam-devel dbus-devel   hwloc-devel libbpf-devel   pmix pmix-devel   jansson-devel   json-c json-c-devel   libyaml libyaml-devel   openssl-devel   mariadb-devel systemd-devel   munge munge-devel


2. Download slurm tar file: wget, Download

3. Download the cuda tool kit for x86_64: wget Download

   Download the cuda tool kit for aarch64: wget Download

The cuda_13.0.2_580.95.05_linux.run file is downloaded.

4. After the file is downloaded, run the following command from the directory where the file is downloaded:

   bash cuda_13.0.2_580.95.05_linux.run --silent --toolkit --toolkitpath=/usr/local/cuda -–override


5. Run the RPM Build command. Run the following command from the directory containing the downloaded tar file. The following command is provided as an example:

   rpmbuild -ta slurm-25.05.2.tar.bz2   --with pmix   --define "with_pmix --with-pmix=/usr"   --with yaml   --define "with_yaml --with-yaml"   --without hdf5   --define "without_hdf5 --without-hdf5"   --with nvml   --define "_with_nvml --with-nvml=/usr/local/cuda"   --without ucx   --define "without_ucx --without-ucx"


After the build is completed, the RPMs are available at /root/rpmbuild/RPMS/x86_64/ or /root/rpmbuild/RPMS/aarch64/.

6. To verify the build before hosting, navigate to /root/rpmbuild/RPMS/x86_64/ or /root/rpmbuild/RPMS/aarch64/ and run the following command:

   sudo rpm -ivh slurm-25.05.2-1*.x86_64.rpm
   slurm-slurmd-25.05.2-1*.x86_64.rpm


Or,

sudo rpm -ivh slurm-25.05.2-1*.aarch64.rpm
slurm-slurmd-25.05.2-1*.aarch64.rpm

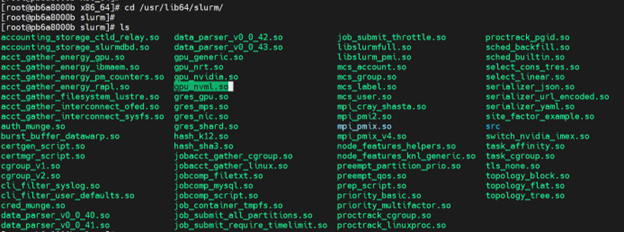

All required .so along with the gpu_nvml.so should be available.

After you verify the build, remove the rpm packages.

sudo dnf remove -y 'slurm'
