Troubleshooting guide

Checking and updating encrypted parameters

  1. Move to the file path where the parameters are saved (as an example, we will be using omnia_config_credentials.yml):

    cd /opt/omnia/input/project_default/

  2. To view the encrypted parameters:

    ansible-vault view omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

  3. To edit the encrypted parameters:

    ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

Checking podman container status from the OIM

  • Use this command to get a list of all running podman conatiners: podman ps

  • Check the status of any specific podman conatiner: podman ps -f name=<container_name>

Packages download issues during local_repo.yml playbook execution

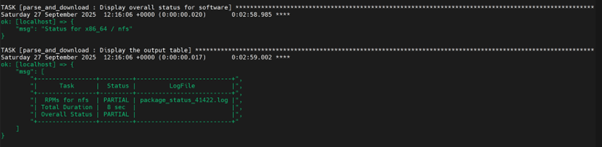

  1. The local_repo.yml playbook generates and provides log files as part of its execution. For example, if the local repository is partially unsuccessful for nfs, analyze the issue using the following steps:

../_images/troubleshoot_local_repo.png

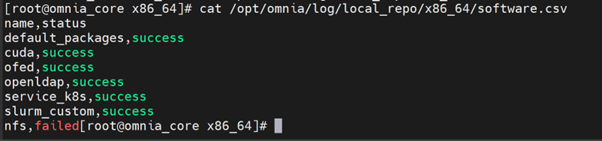

  1. To view the overall download status of all softwares in the .csv format, run the following command:

opt/omnia/log/local_repo/<arch>/software.csv

Example:

/opt/omnia/log/local_repo/x86_64/software.csv
../_images/troubleshoot_local_repo_1.png

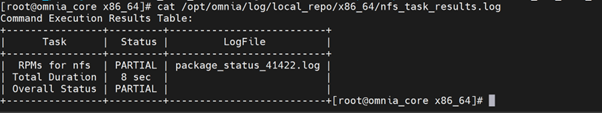

  1. To view the overall download status of all packages and the log filenames for a specific software, run the following command:

/opt/omnia/log/local_repo/<sw>_task_results.log

Example: For nfs:

/opt/omnia/log/local_repo/x86_64/nfs_task_results.log
../_images/troubleshoot_local_repo_2.png

  1. To view the package level status, run the following command:

/opt/omnia/log/local_repo/x86_64/<sw>/status.csv

Example:

/opt/omnia/log/local_repo/x86_64/nfs/status.csv
../_images/troubleshoot_local_repo_3.png

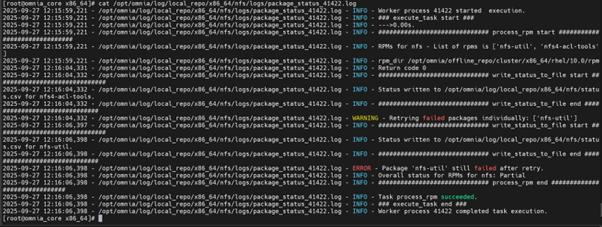

  1. To view the issues information and the reason for job being unsuccessful, see the package_status_<pid>.log file mentioned in the <sw>_task_result.log.

Example:

/opt/omnia/log/local_repo/x86_64/nfs/logs/package_status_41422.log
../_images/troubleshoot_local_repo_4.png

Troubleshooting logs

For more information, see Logs.

Troubleshooting CoreDNS pod in pending state

When you run the omnia.yml or service_k8s_cluster.yml files, sometimes one of the CoreDNS pods remains in the pending state after the Kubernetes installation. This issue is caused by the dns-autoscaler adjusting the CoreDNS replica counts based on the total number of CPU cores across all the cluster nodes. In some environments, this scaling calculation can lead to an unsupported replica count, resulting in pending pods.

Resolution: Do the following:

  1. Retrieve all the deployments using the following command:

kubectl get deployments -A

  1. Delete the dns-autoscaler deployment:

kubectl delete deployment dns-autoscaler -n kube-system

  1. Identify and edit the CoreDNS deployment name from the list of deployments retrieved in step 1:

kubectl edit deployment <coredns-deployment-name> -n kube-system:

  1. Locate the ‘replicas’ field in the editor and change the value to the number of kube controller nodes.

  2. Save the changes. Kubernetes automatically restarts the CoreDNS deployment.

  1. Wait a few minutes for the pods to restart and verify the CoreDNS status:

kubectl get pods -A

Ensure that the CoreDNS pods are in the ‘Running’ state.

  1. Ensure that you rerun the playbook.
