Integrate OpenManage Enterprise with Omnia Kafka Pipeline for Secure Telemetry Data Streaming

This section describes how to configure OpenManage Enterprise to securely stream metrics into the Service Kubernetes clusters using mutual TLS (mTLS).

Prerequisites

Ensure that the pod_external_ip_range parameter is set in the omnia_config.yml file for the Service Kubernetes cluster and it is reachable from the OpenManage Enterprise appliance network.
Ensure Kafka is installed and running in the Service Kubernetes cluster.
External access to Kafka is available through the following LoadBalancer ports:
- 9094 for ingesting and querying data.

Steps

Run the following playbook to retrieve the Kafka connection details and TLS certificates from the Service Kubernetes cluster:
```
cd /omnia/utils
ansible-playbook external_kafka_connect_details.yml
```
The external_kafka_connect_details.yml playbook performs the following:
- Retrieves the Kafka LoadBalancer external IP.
- Extracts the server CA certificate and client certificates/keys from the telemetry namespace.
- Writes the Kafka endpoint and TLS file locations to /opt/omnia/telemetry/external_kafka_connect_details.yml.
- Saves the TLS files in /opt/omnia/telemetry/external_kafka/:
- ca.crt (server certificate)
- user.crt (client certificate)
- user.key (client key)
Note

If OpenManage Enterprise is installed on a different system than the OIM host, copy ca.crt to that system before uploading it in the UI.
Create a client certificate in .pfx format for mTLS by running the following command. Provide a passphrase when prompted:
```
cd /opt/omnia/telemetry/external_kafka/
openssl pkcs12 -export -out user.pfx -inkey user.key -in user.crt
```
In OpenManage Enterprise, navigate to Configuration > Remote Connectivity, and select Enable.

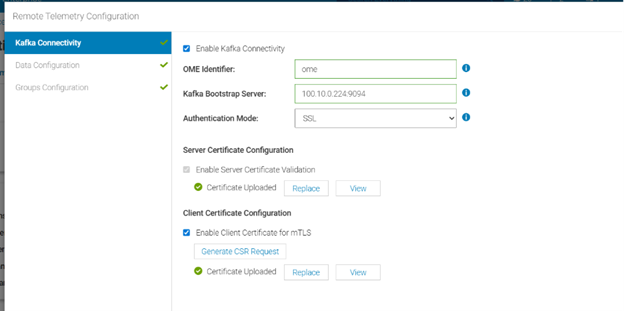

In the Kafka Connectivity wizard, select the Enable Kafka Connectivity check box to turn on Kafka integration.
In the OME Identifier field, enter a unique identifier to be used as the topic prefix for publishing OpenManage Enterprise metrics.
In the Kafka Bootstrap Server field, enter the Kafka external endpoint displayed by the playbook, along with the port number.

Example:
```
<Kafka LoadBalancer External IP>:<Port Number>
```
From the Authentication Mode list, select SSL.
Under Server Certificate Validation, select the Enable Server Certificate Validation check box, and upload ca.crt from /opt/omnia/telemetry/external_kafka/.
Under Client Certificate Configuration, select the Enable Client Certificate for mTLS check box, and upload the client certificate (user.pfx) generated in Step 2. Enter the password or passphrase used to generate the certificate, and click Next.

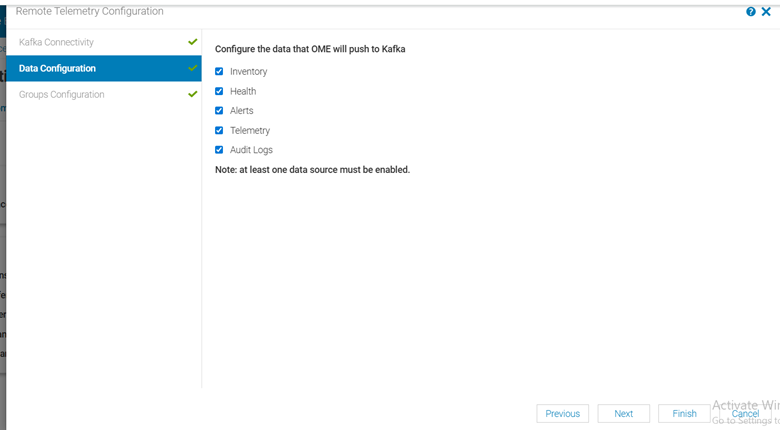

On the Data Configuration page, select the metrics to stream to the Omnia Kubernetes Service cluster, and click Next.

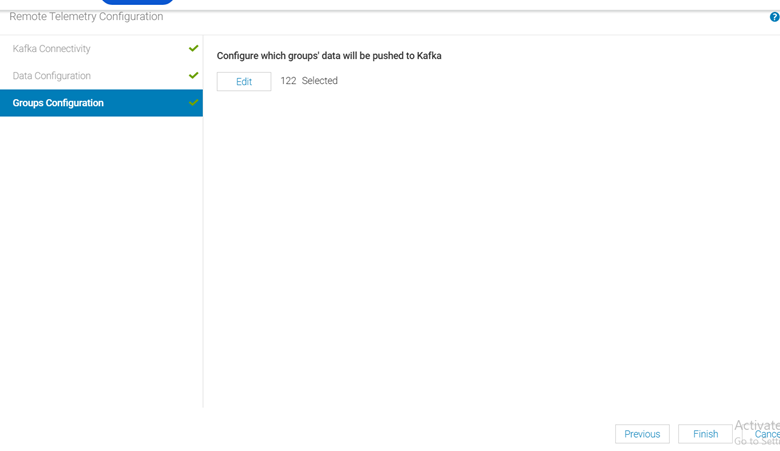

On the Group Configuration page, select the devices and device groups from which metrics should be collected, and click Next.

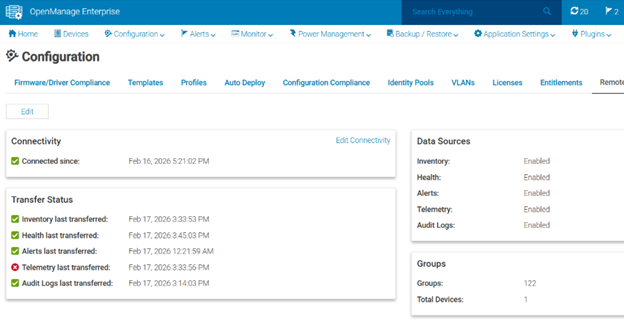

Navigate to Configuration > Remote Connectivity and verify the following:
- Under Connectivity, a green check mark next to Connected since indicates successful connectivity between OpenManage Enterprise and the Omnia Service Kubernetes cluster.
- Under Transfer status, green check marks next to each metric indicate that the selected metrics are being successfully transmitted without errors.

Verify OME Telemetry Data in Kafka

To verify that OME telemetry data is being successfully published to the OME Kafka topics, do the following:

Log in to Service Kubernetes Control plane.

Set the required variables using the following command:

KAFKA_LB_IP=<external IP of bridge-bridge-lb service>
TOPIC=<OME Topic Name>
GROUP=ome-consumer-group
INSTANCE=<a-unique-instance-name>

Create a Kafka consumer using the following command:

curl -s -X POST "http://$KAFKA_LB_IP:8080/consumers/$GROUP" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d '{
        "name": "'"$INSTANCE"'",
        "format": "json",
        "auto.offset.reset": "earliest"
      }'

Subscribe the consumer to the telemetry topic using the following command:

curl -s -X POST "http://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/subscription" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d '{"topics": ["'"$TOPIC"'"]}'

Consume messages from the topic using the following command:

while true; do
  curl -s -X GET "http://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/records" \
    -H 'accept: application/vnd.kafka.json.v2+json' | jq '.'
  sleep 2
done

(Optional) Cleanup the consumer using the following command:

curl -s -X DELETE "http://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE"

Note

From beginning: Ensure "auto.offset.reset": "earliest" when creating the consumer if you want existing data.

Message format: Use "format": "json" only if producers publish JSON. Otherwise use "binary" and decode base64 payloads.

Throughput: Adjust polling interval; bridge returns empty array when no new records.

404/409 errors: 404 usually means wrong group/instance name; 409 means already subscribed.
