Telemetry

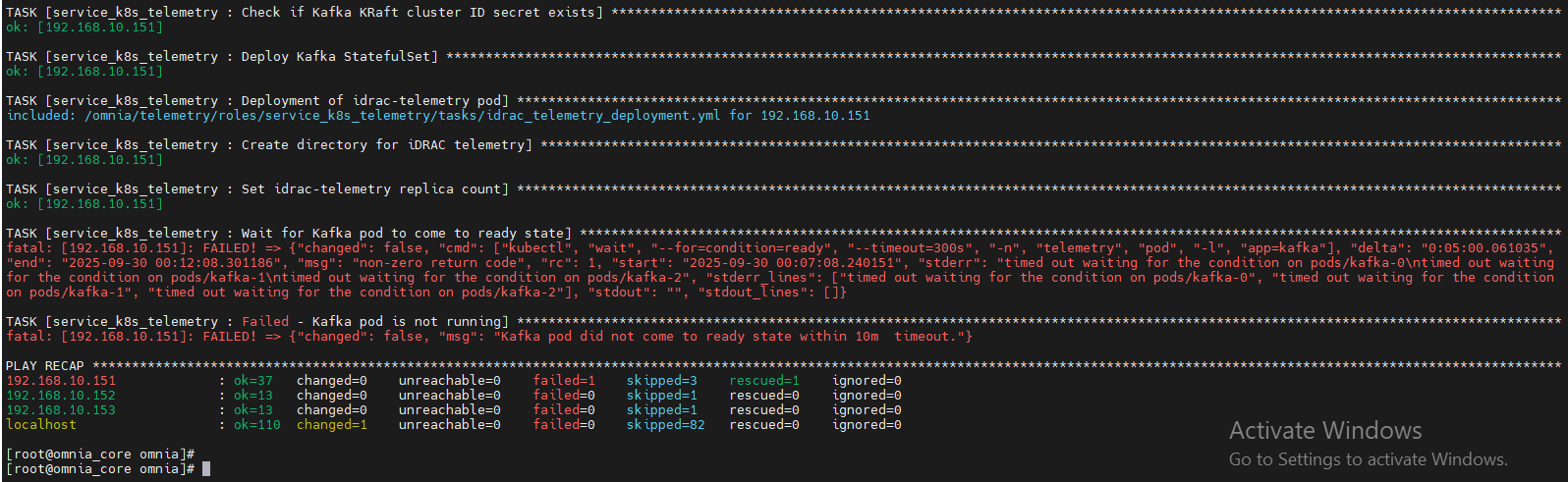

⦾ Why is the telemetry playbook is failing at Kafka pod deployment?

Potential Cause: No kube nodes are available in the service cluster for pod deployments.

Resolution: If this issue occurs during telemetry execution, check if the service kube nodes are booted and added to the service kube_control_plane.

⦾ Why do telemetry pods enter a CrashLoopBackOff state when PowerScale is configured as an NFS server?

Potential Cause: The CSI-PowerScale driver is not installed on the Kubernetes cluster nodes because the CSI driver entry is not present in the ``software_config.json``file. When PowerScale is used without CSI-based integration, Kubernetes treats the storage as a manual NFS mount, which is not supported by Omnia for telemetry workloads.

Resolution: Ensure that the following CSI-PowerScale driver entry is present in the software_config.json file:

{"name": "csi_driver_powerscale", "version": "v2.15.0", "arch": ["x86_64"]}

For more information on deploying the Dell CSI-PowerScale driver, see Deploy CSI drivers for Dell PowerScale Storage Solutions

⦾ Why do kafka telemetry pods enter a ``CrashLoopBackOff`` state and fail to retrieve telemetry with the error ``No space left on device``?

../../../_images/faq_telemetry_error_crash_loop.png

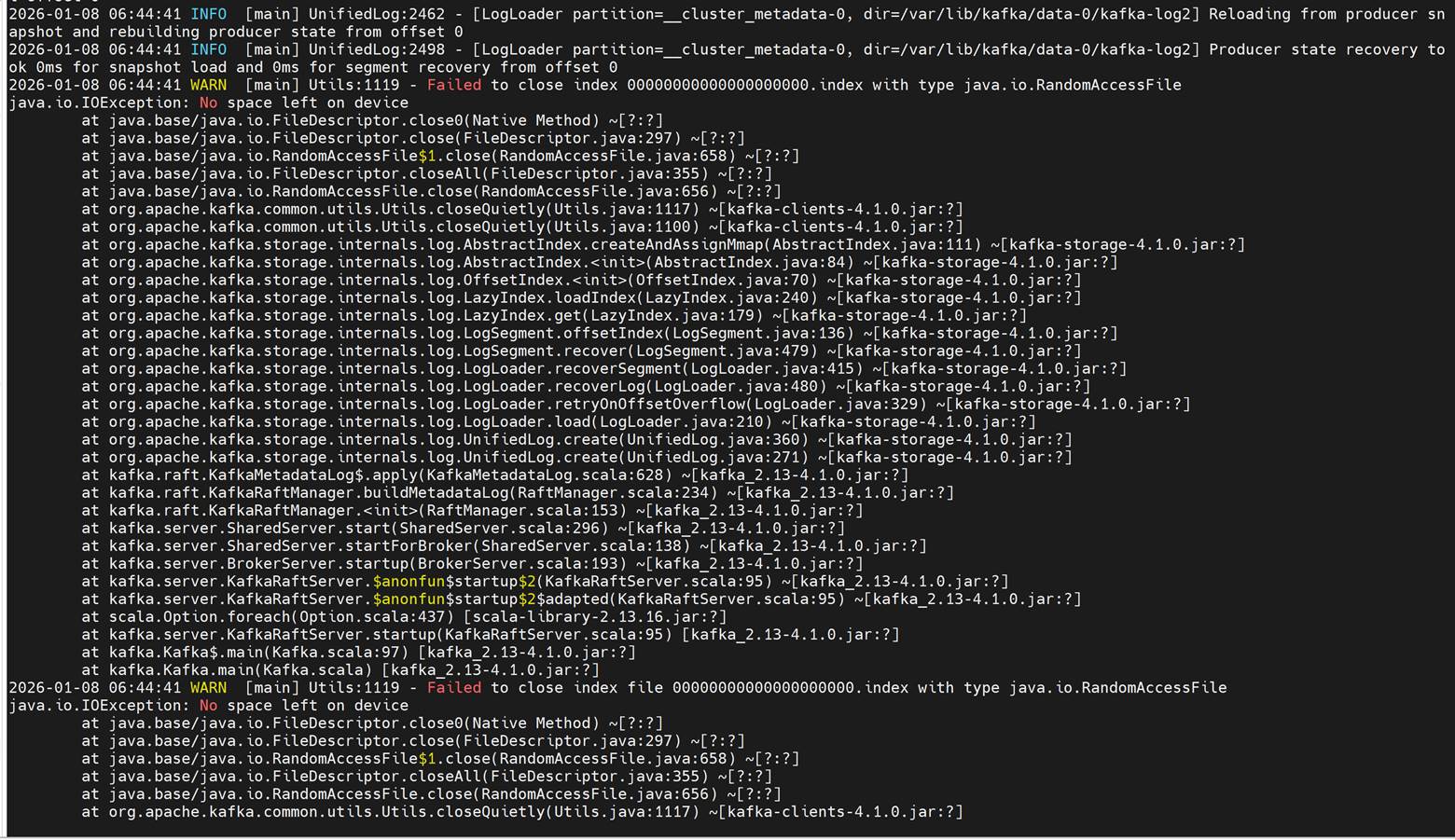

../../../_images/faq_telemetry_error_nospace.jpg

Potential Cause: This issue occurs when the configured persistence_size for Kafka reaches its capacity limit.

Resolution: The default 8Gi persistent volume size is suitable for small clusters (typically fewer than 5 nodes). For larger clusters, increase the persistence_size and configure Kafka retention settings log_retention_hours and log_retention_bytes so that old logs are deleted before the persistent volume reaches its limit. These settings should be based on your expected data volume and cluster size.
